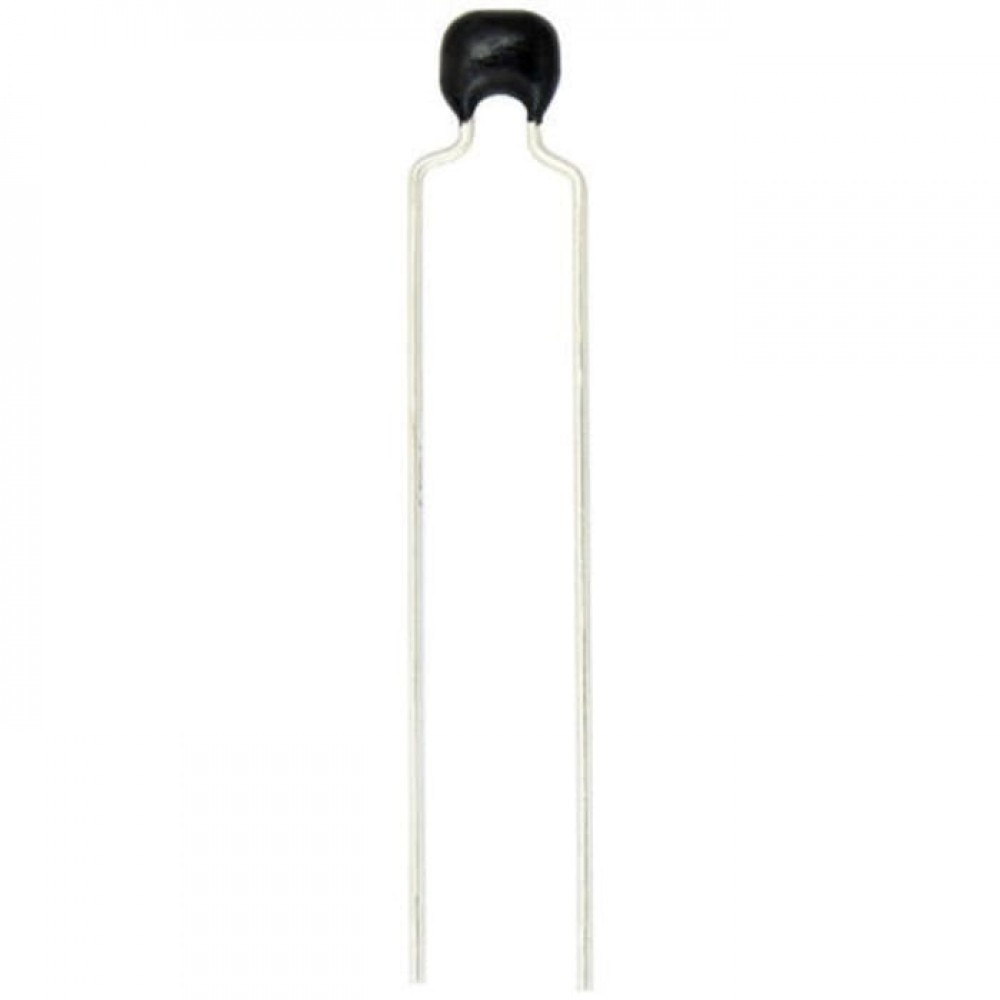

K104K15X0UF53H5H
Цена от:
44,96 руб.
Описание K104K15X0UF53H5H
Vishay K...H Series High Operating Temperature Multilayer Ceramic Capacitors (X0U HOTcaps) K…H multilayer ceramic capacitors from Vishay are AEC-Q200 qualified and suitable for the harshest automotive operating conditions. These MLCCs feature an unmatched maximum operating temperature of +175°C, and are constructed from a X0U dielectric. These ceramic capacitors have a capacitance change of +22%/-56% between -55°C and +175°C. Providing a new standard of performance and reliability, the HOTcap range from Vishay is produced with a unique wet build process and noble metal electrodes.
Featuring 100% tinned copper clad leads, straight leads or crimped leads are available, with spacing of 2.5 mm or 5 mm. Vishay K…H high operating temperature MLCCs also feature UL 94 V-0 flame retardant epoxy resin.
| Brand | Vishay |
|---|---|
| Емкость | 100нФ |
| Напряжение | 50В пост. тока |
| Тип монтажа | Монтаж на плату в отверстия |
| Диэлектрический | X0U |
| Допуск | ±10% |
| Размеры | 3.8 x 3.8 x 2.6мм |
| Длина | 3.8мм |
| Глубина | 3.8мм |
| Высота | 2.6мм |
| Серия | K...H Series |
| Максимальная рабочая температура | +175°C |
| Минимальная рабочая температура | -55°C |
| Тип клеммы | Радиальный |
| Интервал между выводами | 5 mm |
| Страна происхождения | CN |
