13FR200E

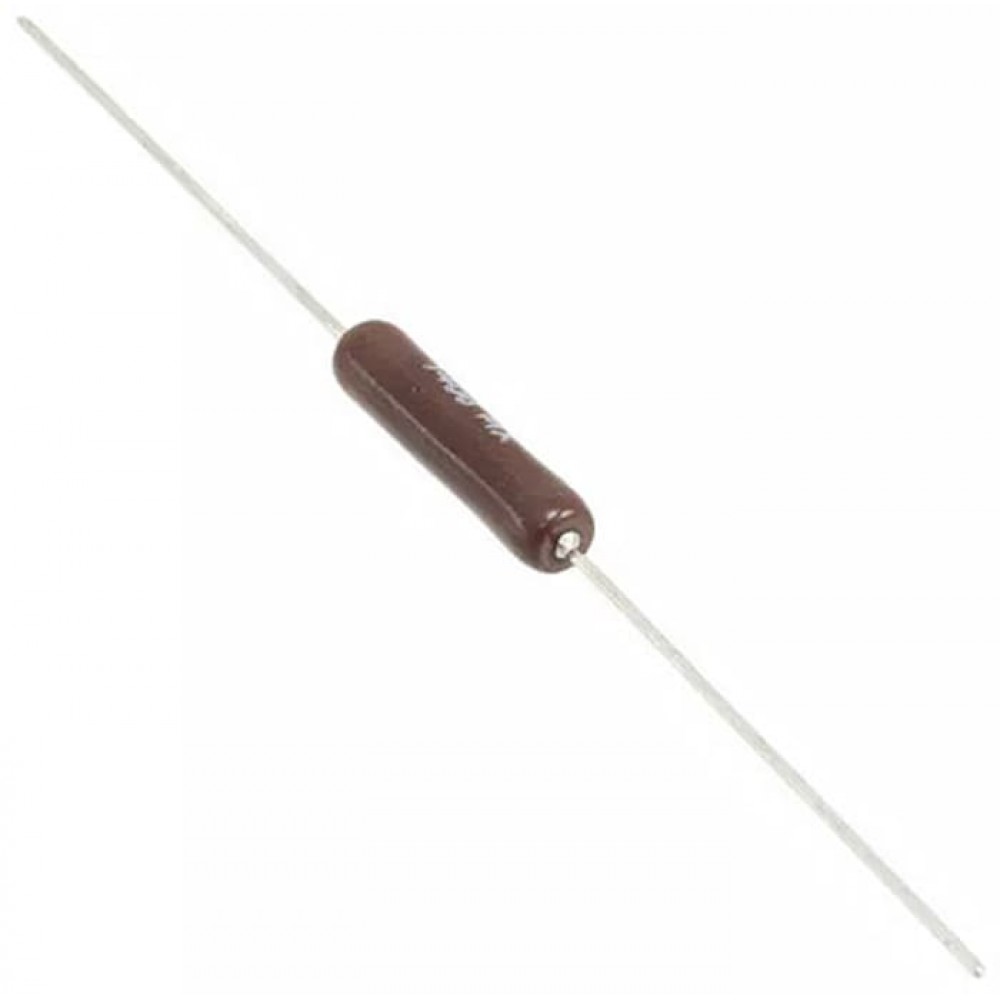

Изображения служат только для ознакомления. См. документацию товара
Описание 13FR200E
Ohmite 10 Series Current Sense Resistors Ohmite 10 Series are current sense axial resistors. Two versions of the 10 series axial resistors are available, with either two terminals or four terminals.
The four termination variation is designed for use in a Kelvin configuration. This configuration allows a current to be applied through two opposite terminals while the sensing voltage is measure across the other two terminals. The temperature coefficient of the terminals and the resistance is practically eliminated by the Kelvin configuration. The use of four terminals enables a lower self-heating drift and lower temperature coefficient of resistance than traditional two terminal axial resistors.
| Brand | Arcol Ohmite |
|---|---|
| Сопротивление | 200мОм |
| Номинальная мощность | 3W |
| Допуск | ±1% |
| Серия | 13 |
| Максимальная рабочая температура | +275°C |
| Минимальная рабочая температура | -55°C |
| Страна происхождения | MX |
