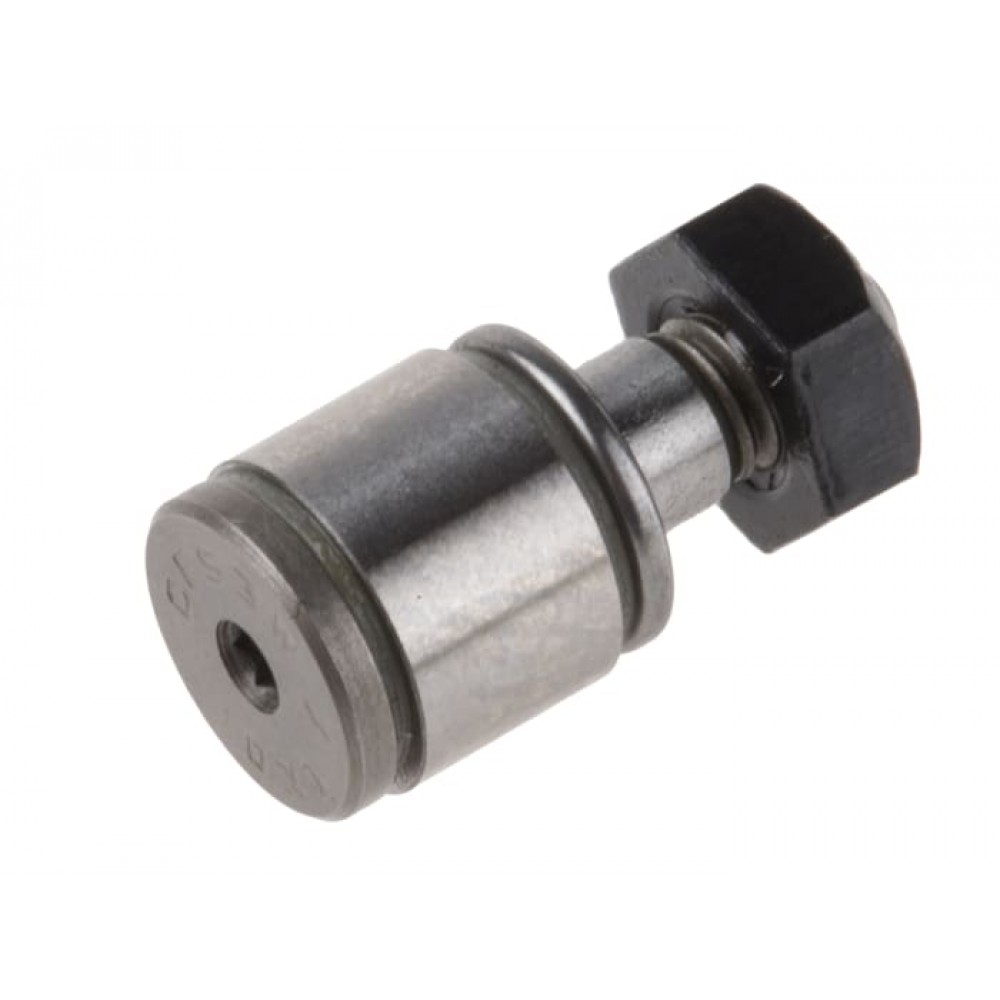

CFS 3W
Изображения служат только для ознакомления
Цена от:
4 945,10 руб.
Описание CFS 3W
Miniature Type Cam Followers CFS The miniature type cam followers from IKO are some of the smallest cam followers in the world. Designed to be compact, they have a stud diameter ranging from 1.4 mm to 6 mm and an outside diameter from 4 mm to 13 mm.
Cam followers with a thrust washer have high wear and heat resistance between the outer ring and the stud head.
Stainless steel cam followers are corrosion resistant and can be used in oil-inhibited areas, water mist environments and clean rooms.
The CF1.4WV cam follower is the smallest in the world with a stud diameter of only 1.4 mm and an outside diameter of 4 mm. The follower has a hexagon socket enabling easy mounting, a full complement load type and thrust washers.
| Brand | IKO Nippon Thompson |
|---|---|
| Тип | В миниатюрном кожухе |
| Диаметр валка | 6mm |
| Длина валка | 12.5mm |
| Номинальная статическая нагрузка | 611N |
| Динамическая грузоподъемность | 629N |
| Размер отверстия | 3мм |
| Материал | Высокоуглеродистая сталь |
| Страна происхождения | JP |
