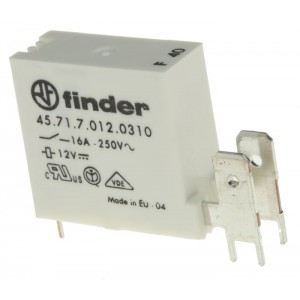

45.71.7.012.0310

Описание 45.71.7.012.0310

Finder 45 Series Relay Finder's 45 series of miniature PCB relays are designed to suit photovoltaic (PV) inverters, domestic appliances and other equipment needing reinforced insulation, high ambient temperature and full disconnection contacts. The 45 series of miniature PCB relays have SPST-NO contacts that are rated up to 16A.
With an extended 3mm contact gap, stock number 749-5130 meets the requirements of the EN60730-1 standard for household use and is rated for operation at an ambient temperature up to 105ºC. All Finder's miniature 45 series PCB relays have high sensitivity DC coils rated at 360mW and have been designed with an 8mm clearance and creepage distance, ensuring safe separation of supply and output, and reinforced insulation between coil and contacts, meeting the requirements of EN60335-1 (VDE0700).
Choose between the 45.31 series (stock number 749-5130) which has PCB terminals or the 45.71 series (stock numbers 494-6348 and 494-6360) which have PCB and 0.25 inch Faston style terminals.
