1005.5
Описание 1005.5

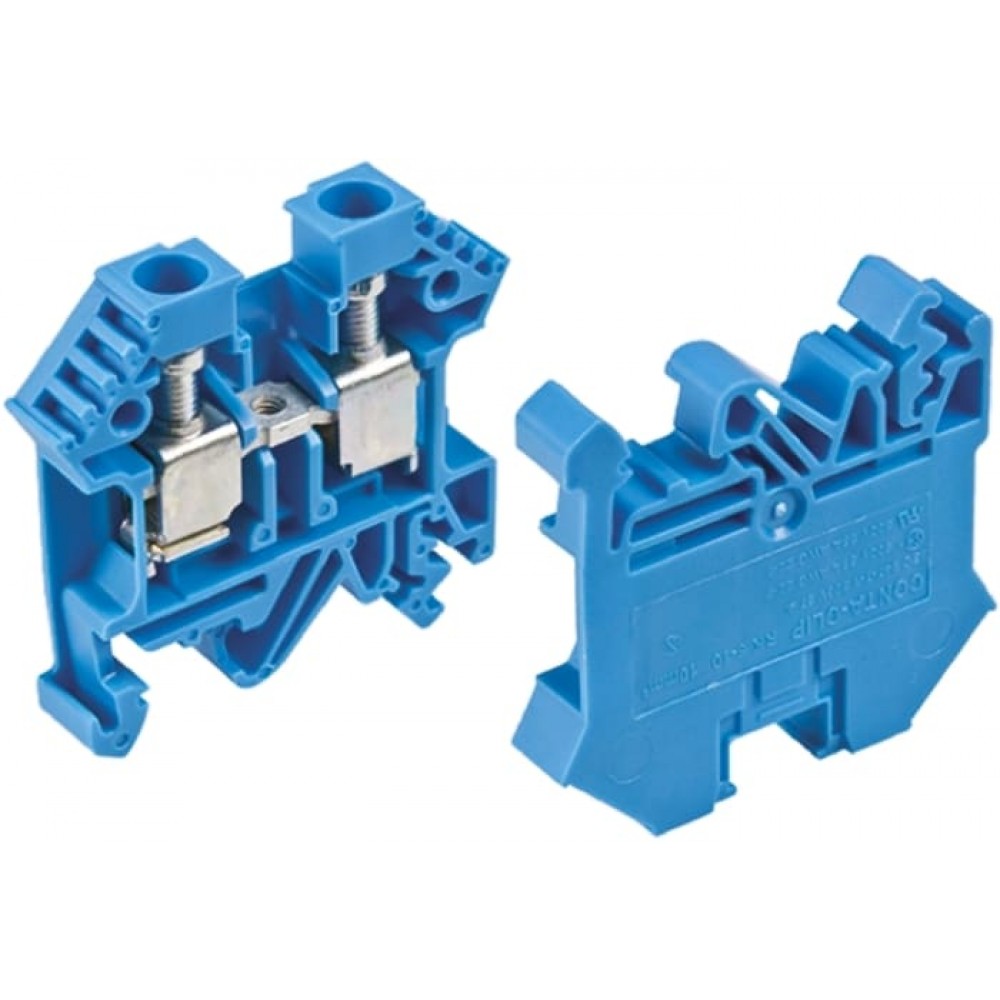

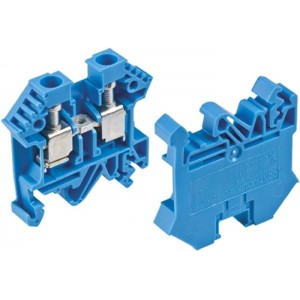

Standard Feed Through DIN rail mounted terminals, with universal mounting foot clips to both G profile (asymmetric to BS5825:1990) and top hat profile (symmetric to BS5584:1978) rails, with a range of features to suit all applications. The 2.5 to 10mm² terminals have common end covers and partitions, there are 10 pole Jumper Bars available for cross connection and are easily fitted with markers on either side.
Brand | RS Pro |
---|---|
Серия | RK |
Размер провода | 22 → 6 AWG |
Цвет | Синий |
CSA кабеля | 0.2 → 10мм² |
Номинальный ток | 65A |
Номинальное напряжение | 800 В |
Страна происхождения | DE |
