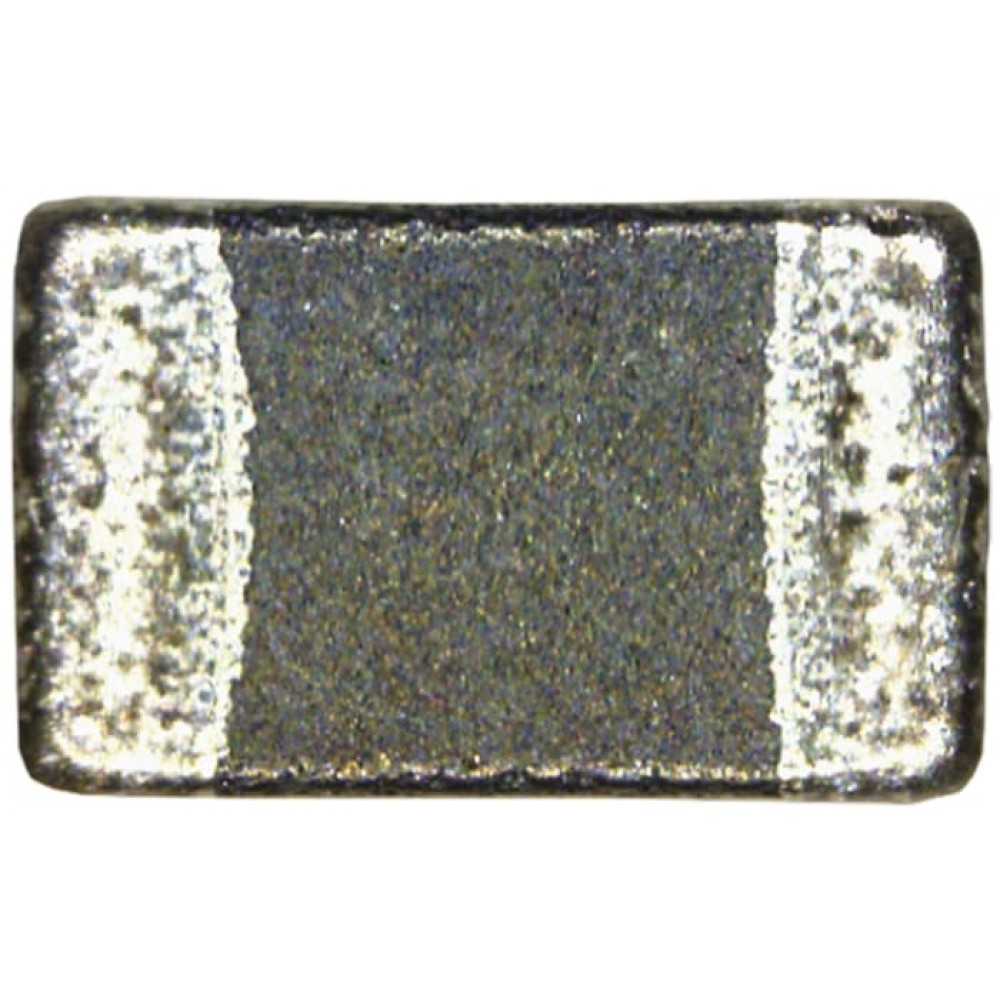

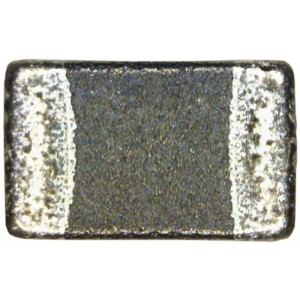

BLM21BB600SN1D
Описание BLM21BB600SN1D
SMD 0805 Ferrite Filters- BLM21B Series The BLM series of ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. At noise frequencies, these ferrite beads are designed to function nearly as resistors, leaving signal wave forms undistorted and reducing the possibility of resonance. The nickel barrier construction of the external electrodes enables excellent solder heat protection.
BLM_P variants feature low DC resistance and are ideal for high current circuits.
This series of ferrite beads are designed for general use applications.
Brand | Murata |
---|---|
Тип корпуса | 0805 (2012M) |
Импеданс при 100 МГц | 60Ом |
Номинальный ток | 800mA |
Тип | Чиповые с ферритовым сердечником |
Размеры | 2 x 1.25 x 0.85мм |
Длина | 2мм |
Глубина | 1.25мм |
Высота | 0.85мм |
Материал | Феррит |
Серия | BLM21BB |
Максимальное сопротивление пост. тока | 130мОм |
Применение | Фильтр электромагнитных помех, высокоскоростные сигнальные линии |
Страна происхождения | JP |
