22.2618-29
Цена от:
260,40 руб.
Описание 22.2618-29

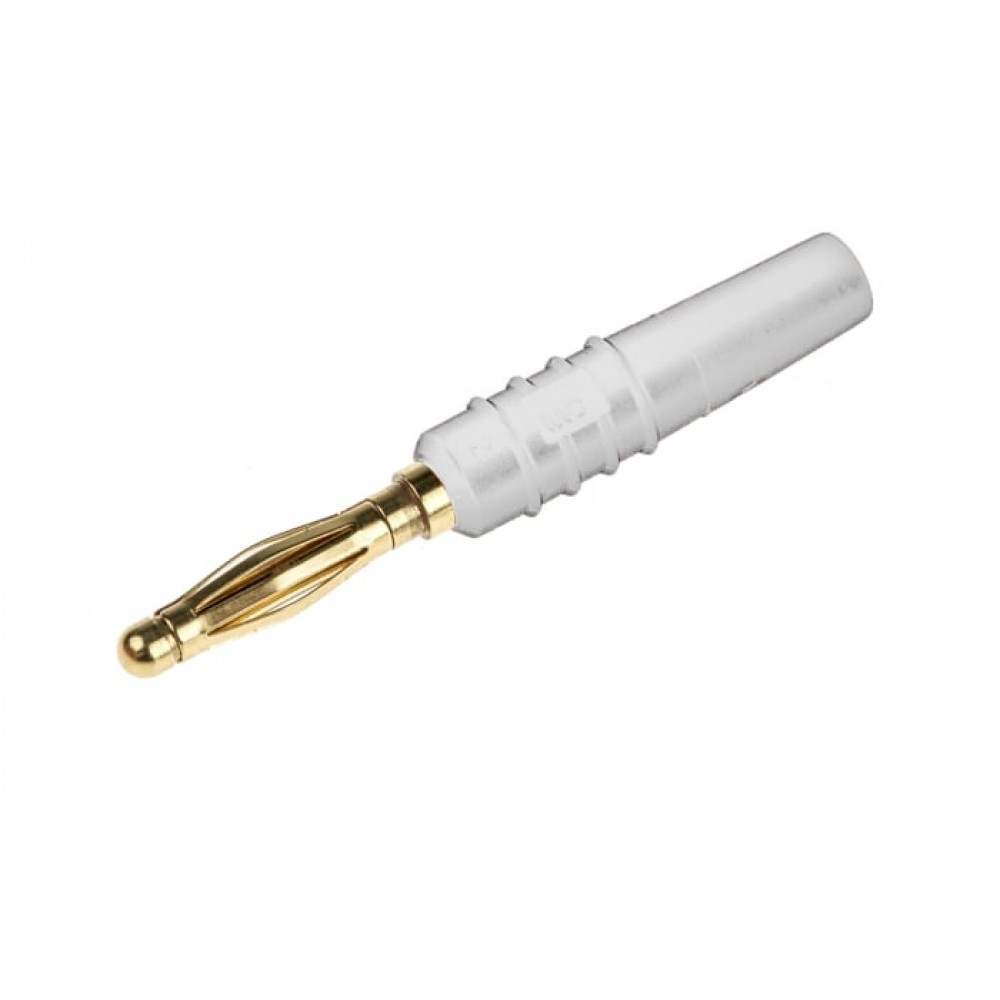

Multi-Contact SLS205-L Series Multilam Inline 2 mm Plugs Multi-Contact SLS205-L series multilam inline 2 mm plug connectors are for the self assembly of test leads to your own specification and test lead application. These 2mm diameter gold plated inline plugs have a spring loaded miltilam contact with solder bucket connection and the press fit rigid insulator body allows for a maximum cable diameter of 2.1 mm, suitable for many applications that call for a 2 mm diameter multilam plug connector. The test plug insulator is assembled over an associated cable prior to soldering into the solder bucket, it is then a press fit over the 2 mm miltilam plug tang to finalise and complete the SLS205-L inline plug connector assembly.
| Brand | Staubli |
|---|---|
| Цвет | Белый |
| Тип соединителя | Вилка |
| Метод оконцовки | Припой |
| Номинальное напряжение | 30 V, 60 V dc |
| Номинальный ток | 10A |
| Покрытие контактов | Золотой |
| Пружинный контакт | Да |
| Длина | 27мм |
| Тип | Штекер типа «банан» |
| Размер разъема | 2mm |
| Страна происхождения | CH |
