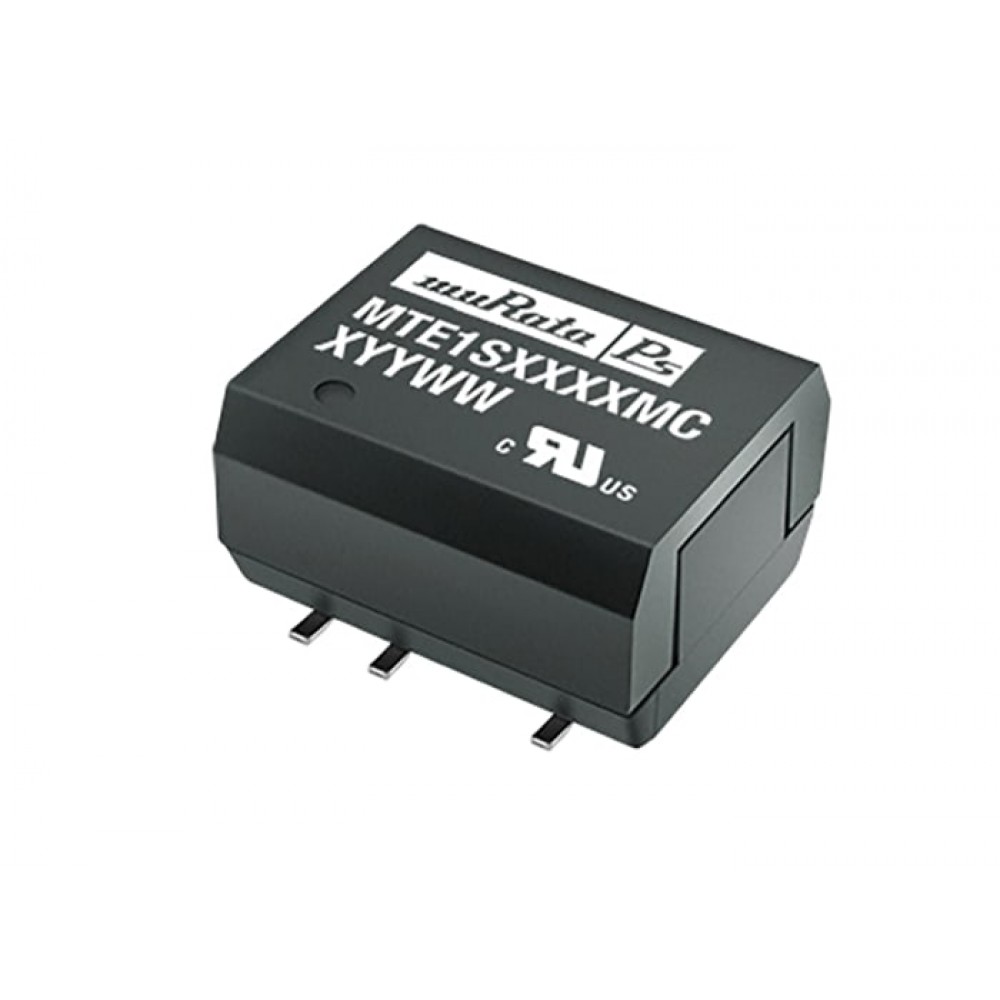

MTE1S1212MC
Изображения служат только для ознакомления. См. документацию товара
Описание MTE1S1212MC
Murata 1W SMD Single Output Unregulated Isolated DC-DC Converter - SMD MTE1 Seri The Murata Power Solutions MTE1 is a series of isolated, 1 Watt, single output, DC-DC converters. Suitable for a broad range of industrial and automation applications, the MTE1 offers 86% typical efficiency. These DC-DC converters consume less power and achieve higher reliability rates, contributing to better overall product and system reliability. This series of DC-DC converters also has a load regulation that is typically 5% better than similar models available in the industry. Input voltage options of the MTE1 series are the 5 most popular nominal input voltages of 3.3, 5, 12, 15, or 24 VDC input. Output voltages include 3.3, 5, 9, 12, or 15 VDC. Full load capability is provided across the full industrial temperature range of -40 degrees C to +85 degrees C.
The MTE1 series has the highest moisture sensitivity level rating, MSL 1, and is compatible with a peak reflow solder temperature of 245 degrees C as per J-STD-020D. Packaged to match an industry standard footprint, the MTE1 series can be used as a pin-compatible replacement for older designs without the need to re-engineer an application’s PCB layout.
| Brand | Murata Power Solutions |
|---|---|
| Выходное напряжение | 12В пост. тока |
| Диапазон входного напряжения | 10,8 → 13,2 В пост. тока |
| Номинал входного напряжения | 12 В пост. тока |
| Напряжение изоляции | 1кВ пост. тока |
| Номинальная мощность | 1W |
| Выходной ток | 83mA |
| Тип монтажа | Поверхностный монтаж |
| Количество выходов | 1 |
| Эффективность | 88% |
| Корпус | SMD |
| Минимальная температура | -40°C |
| Стабильность вых. напряжения при изменении нагрузки | 4.5% |
| Максимальная температура | +85°C |
| Глубина | 7.05мм |
| Серия | MTE1 |
| Длина | 12.7мм |
| Страна происхождения | CN |
