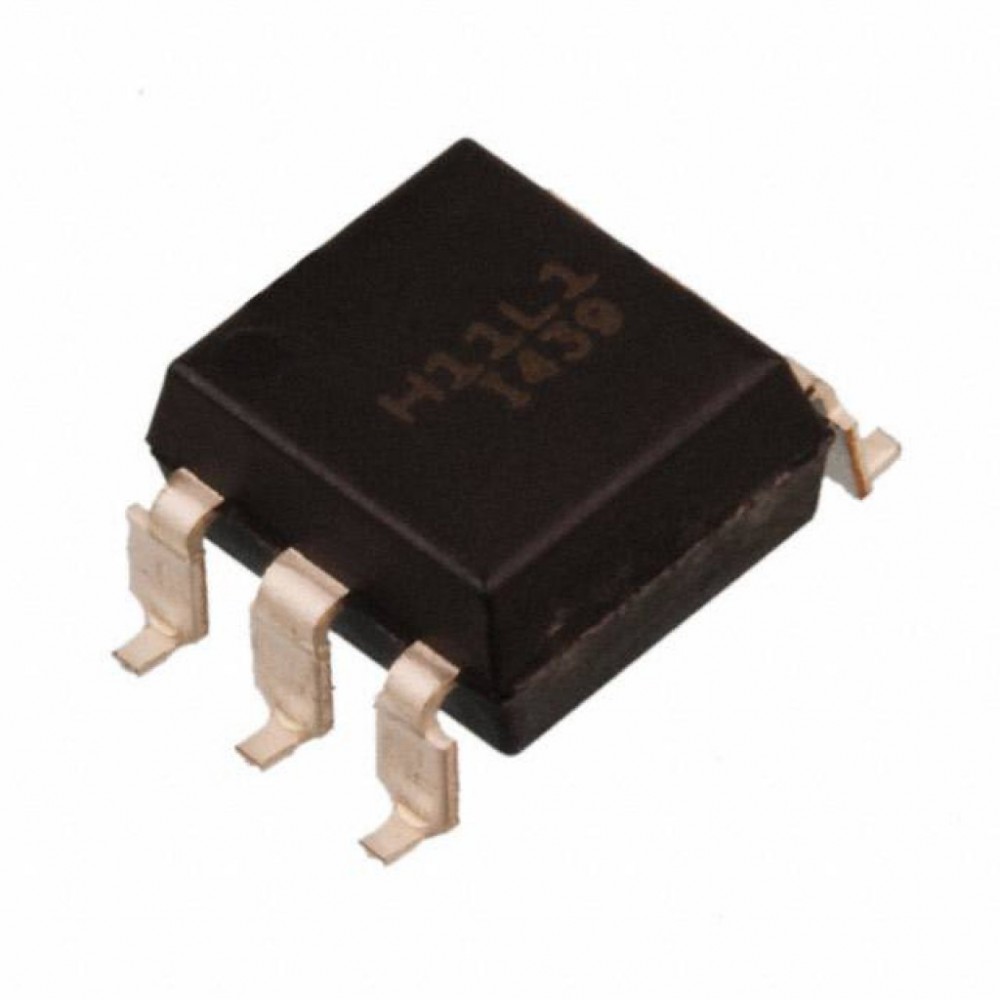

H11L1SM, OPTOCOUPLER LOGIC OUT 6-SMD
Технические параметры
-
КорпусSMDIP-6
-
Тип упаковкиTube (туба)
-
Нормоупаковка50 шт
-
Вес брутто1.07 г.
-
Число каналов
-
Тип входа
-
Тип выхода
-
Скорость передачи данных
-
Допустимый выходной ток на канал
-
Напряжение изоляции
-
Время задержки распространения
Описание H11L1SM
The H11L1S-M from Fairchild is a high speed Schmitt trigger output optocoupler in 6 pin surface mount DIP package. This device has a high speed integrated circuit detector optically coupled to a gallium arsenide infrared emitting diode. Schmitt trigger provides hysteresis for noise immunity and pulse shaping to the output fed to it. Simplicity of operation is optimized by detector. This optocoupler is used for logic to logic isolator, programmable current level sensor, line receiver to eliminate noise and transient problems, AC to TTL conversion square wave shaping, digital programming of power supplies and interfaces with computer peripherals.
• UL 1577 and DIN-EN IEC60747-5-5 certified
• High data rate Typical of 1MHz (NRZ)
• Microprocessor compatible drive
• Guaranteed on/off threshold hysteresis
• Isolation voltage is 4.17KV
• Single channel
• Operating temperature range from -40°C to 85°C
Количество каналов | 1 |
Конфигурация каналов: сторона 1/сторона 2 | 1/0 |
Напряжение изоляции (RMS), В | 4170 |
Тип входа | DC |
Тип выхода | Open Collector |
Выходной ток на канал, мА | 50 |
Скорость передачи данных, МБод | 1 мгц |
Напряжение питания, В | 3…15 |
Рабочая температура, °C | -40…+85 |
Корпус | SMD-6 / DIP-6 SMD Leads |
Вес, г | 0.8 |
-
