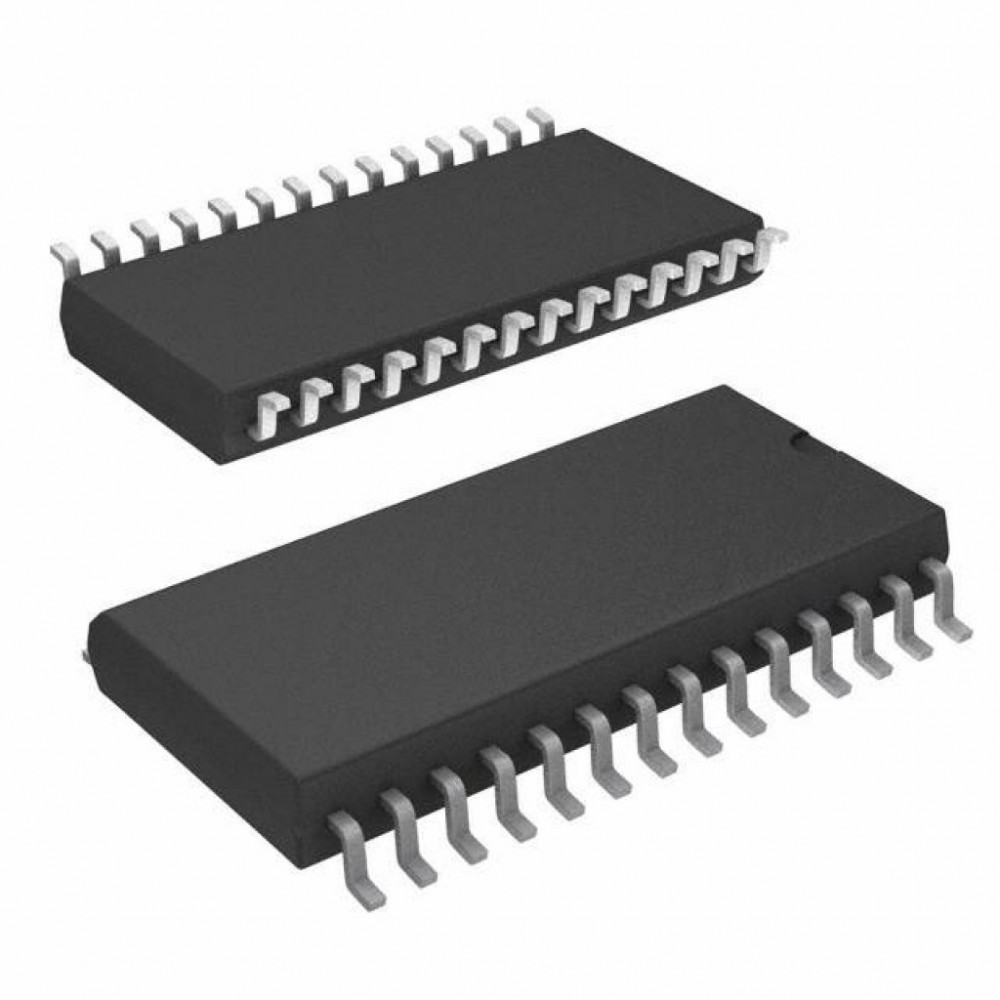

IS62C256AL-45ULI, Статическое ОЗУ электропитание 5В 256К-бит 32Kx8 45нс асинхронное
Статическое ОЗУ электропитание 5В 256К-бит 32Kx8 45нс асинхронное
Технические параметры
-
КорпусSOP28
-
Тип упаковкиPalette (палетта)
-
Нормоупаковка120 шт
-
Вес брутто2.53 г.
-
Тип памяти
-
Объем и организация памяти
-
Быстродействие
-
Интерфейс
-
Напряжение питания
Описание IS62C256AL-45ULI
The IS62C256AL-45ULI is a 32.768 word by 8-bit low power CMOS Static RAM. It is fabricated using ISSI's high-performance, low power CMOS technology. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 150µW (typical) at CMOS input levels. Easy memory expansion is provided by using an active LOW Chip Select (CE) input and an active LOW Output Enable (OE) input. The active LOW Write Enable (WE) controls both writing and reading of the memory.
• 200mW Typical low active power
• 150µW (typical) CMOS standby, 15mW (typical) operating low standby power
• Fully static operation, no clock or refresh required
• TTL compatible inputs and outputs
• Single 5V power supply
Серия | is62c |
Тип памяти | sram |
Объем памяти | 256 kбит(32k x 8) |
Максимальная тактовая частота (скорость) | 45 нс |
Интерфейс | parallel |
Напряжение питания, В | 4.5…5.5 |
Рабочая температура, °C | -40…+85 |
Корпус | sop-28 |
Вес, г | 1.7 |
-
IS62C256AL-45TLI SRAM Chip Async Single 5V 256K-Bit 32K x 8 45nsISSITSOP28
-
IS62C256AL-45TLI-TR IC SRAM 256KBIT 45NS 28TSOPISSITSOP28-I
-
IS62C256AL-45ULI-TR IC SRAM 256KBIT 45NS 28SOPISSISO28W
