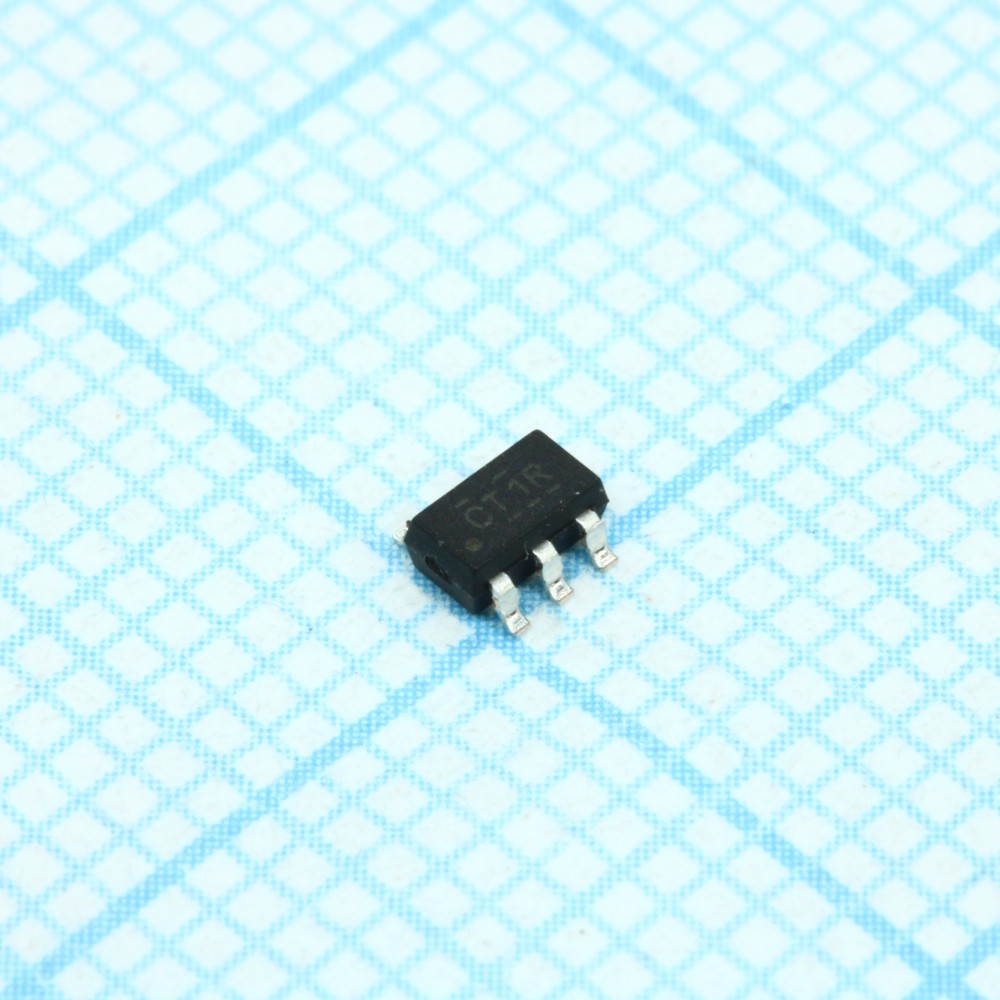

SN74LVC1T45DBVR, приемопередатчик однобитовый КМОП кристалл, SOT23-6

Описание SN74LVC1T45DBVR

The SN74LVC1T45DBVR is a Single-bit Dual-supply Bus Transceiver with configurable voltage translation and 3-state outputs. This single-bit non-inverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 to 5.5V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.8, 2.5, 3.3 and 5V voltage nodes. Designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input activate either the B-port outputs or the A-port outputs. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

• Port to operate over full 1.65 to 5.5V power supply range
• VCC isolation feature
• DIR input circuit referenced to VCCA
• Low power consumption, 4µA maximum ICC
• ±24mA Output drive at 3.3V
• Ioff supports partial power-down mode operation
• 420, 210, 140 and 75Mbps Maximum data rates
• Latch-up performance exceeds 100mA per JESD 78, class II
• Green product and no Sb/Br
