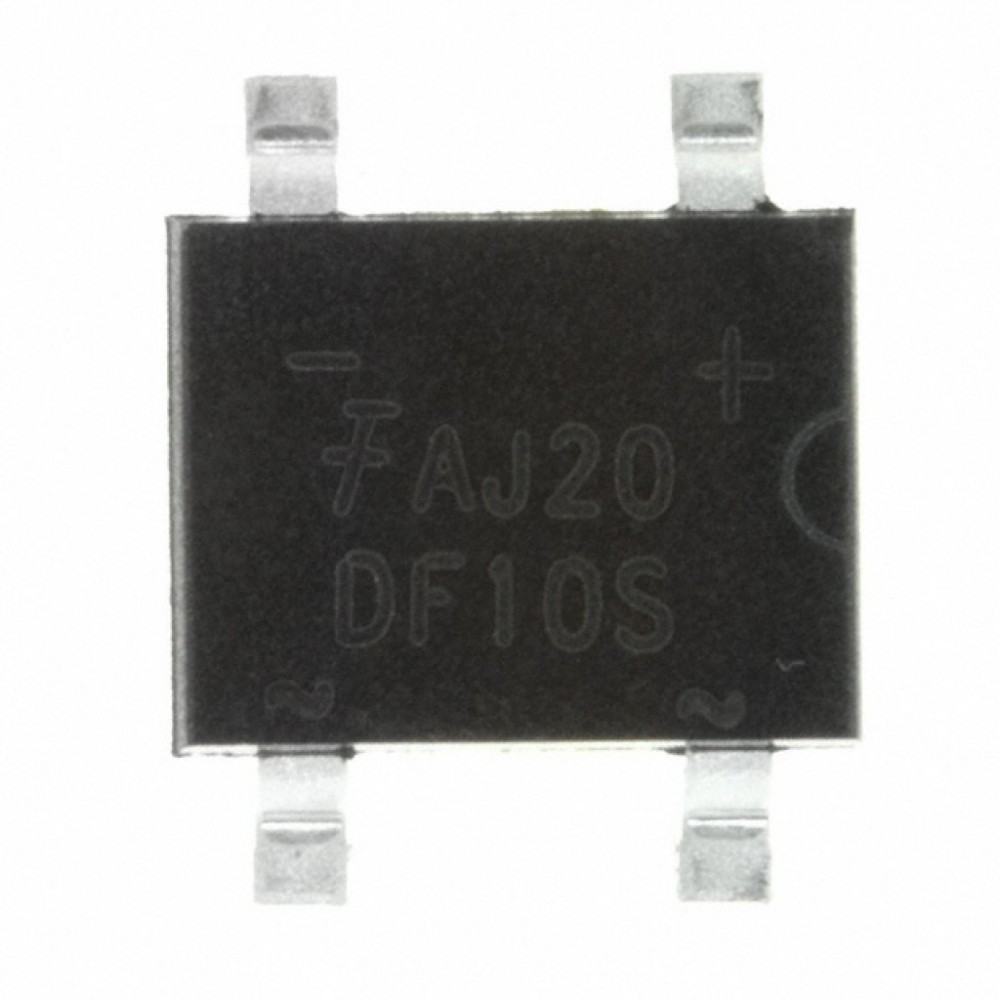

DF10S, Диодный мост 1А 1000В
Изображения служат только для ознакомления
Цена от:
7,32 руб.
Описание DF10S
The DF10S is a glass passivated Bridge Rectifier with the ever-pressing need to improve power supply efficiency, improve surge rating, improve reliability and reduce size, the DFxS family sets a standard in performance. The design offers an surge rating of 50A. This is important when improving reliability and increasing efficiency. High efficiency designs strive to reduce circuit resistance, which, unfortunately can result in increased inrush surge. As such high surge current ratings can be required to maintain or improve reliability. The design also offers better efficiency by achieving a 1.5A VF of 1.1V maximum at 25°C. This lower VF also supports cooler and more efficient operation.
• 700V Maximum RMS bridge input voltage
• 3.1W Power dissipation
• 25pF at 4V/1MHz Total capacitance per leg
• UL Certified
| Максимальное постоянное обратное напряжение,В | 1000 |
| Максимальное импульсное обратное напряжение,В | 1000 |
| Максимальный прямой(выпрямленный за полупериод) ток,А | 1 |
| Максимальный допустимый прямой импульсный ток,А | 50 |
| Максимальный обратный ток,мкА | 5 |
| Максимальное прямое напряжение,В | 1.1 |
| при Iпр.,А | 1 |
| Общая емкость Сд,пФ | 25 |
| Рабочая температура,С | -55…+150 |
| Способ монтажа | smd |
| Корпус | dfs |
| Количество фаз | 1 |
| Вес, г | 0.7 |
